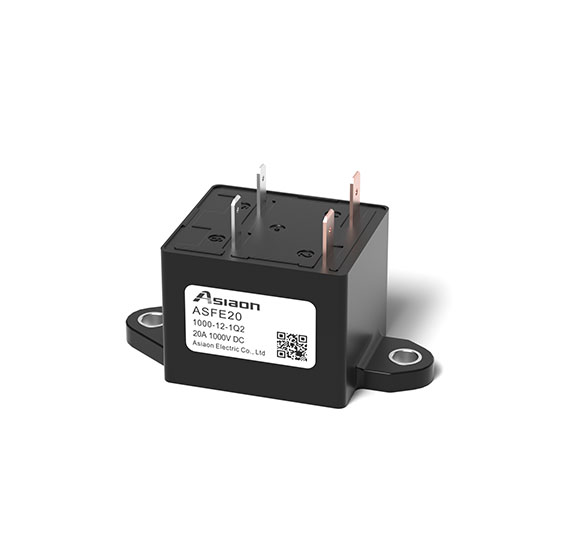

High Voltage DC relay

Asiaon's High Voltage DC relay offers significant advantages in electrical performance, stability, adaptability and convenience to meet the diverse control needs of high voltage DC circuits.

1、High Load Capacity: It can handle a load voltage of 1000V DC and a rated current of 20A, and is suitable for high - voltage DC circuits.

2、Low Contact Resistance: With a contact resistance of ≤4.5mΩ at 20A, it reduces energy loss and ensures stable operation.

3、Long Electrical Life: It has high electrical durability under different loads, reducing maintenance costs.

4、Fast Response: The operate time is ≤30ms and the release time is ≤10ms, enabling quick circuit control.

5、Good Insulation: With high insulation resistance and dielectric strength, it guarantees safety and stable operation.

6、Wide Operating Range: It can work in a temperature range of -40℃~ +85℃ and a humidity range of 5%~85%RH.

7、Easy Installation: Its QC terminal structure and specific installation dimensions make wiring and installation convenient.
