◆ Rated load 16A
◆ Low height 16mm
◆ Creepage distance: 10mm
◆ 5kV dielectric strength (between coil and contacts)
| Specifications | |||

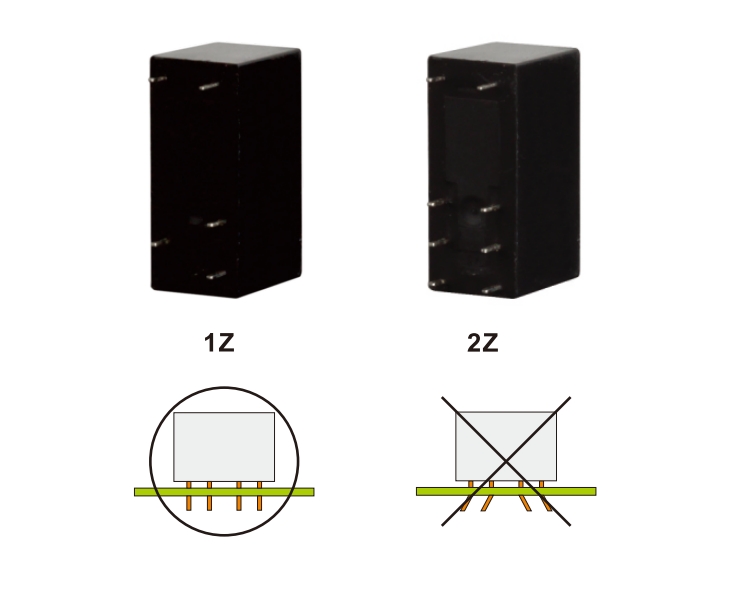

| Contact | Contact Form | 1Z | 2Z |
| Rated Load (Resistive property) |
12A 250VAC/30VDC 16A 250VAC/30VDC |
8A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Charact eristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥5000VAC/1min | |||
| Operate/Release Time | ≤15ms/10ms | ||
| Terminal Type | PCB | ||
| Coil | Operating Power DC/AC | 0.4W | |
| DC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 5 | 3.75 | 0.5 | 62.2 |
| 6 | 4.50 | 0.6 | 90 |
| 12 | 9.0 | 1.2 | 360 |
| 24 | 18.0 | 2.4 | 1440 |
| 48 | 36.4 | 4.8 | 5760 |
| 60 | 48.0 | 6.0 | 9000 |
| 110 | 82.5 | 11.0 | 30250 |
