◆ Relay and socket 2-in-1, small size,replace 13F relay

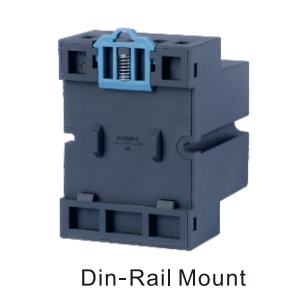

◆ Din-Rail installation, quick screw connection
◆ With press test button and LED indicator
◆ Terminal connection as socket

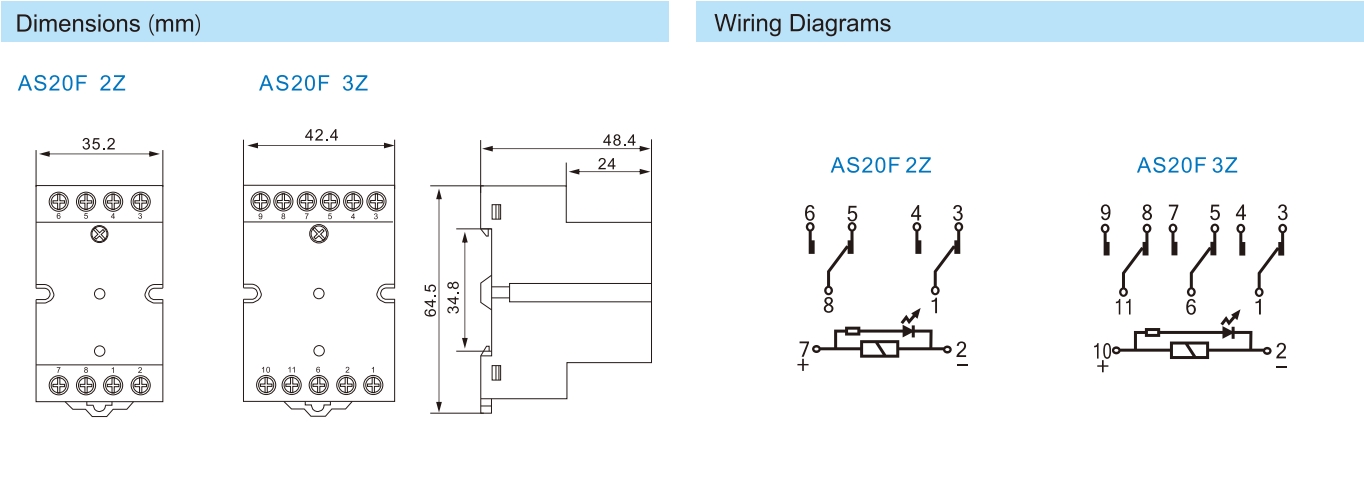

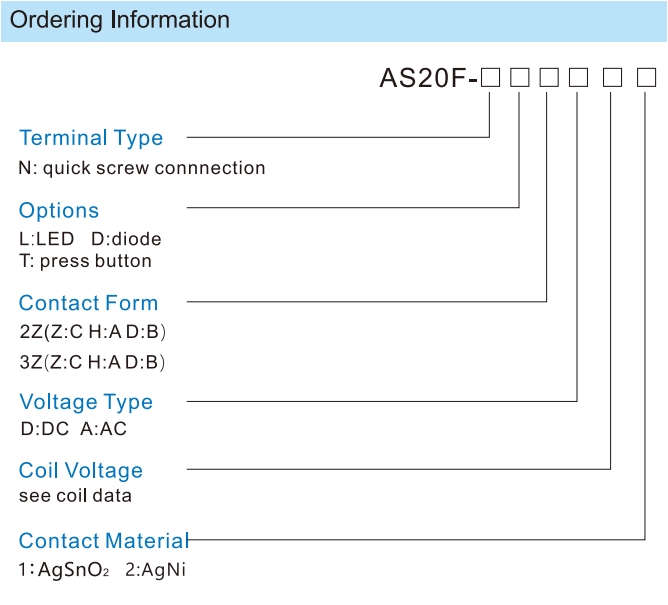

| Specifications | |||
| Contact | Contact Form | 2Z | 3Z |
| Rated Load | 10A 250VAC/30VDC | ||
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ AgNi | ||
| Charact eristics | Insulation Resistance | ≥500MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥1500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||
| Terminal Type | Quick screw connection | ||
| Coil | Operating Power DC/AC | 1.6W/2.8VA | |
| DC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 6 | 4.8 | 0.6 | 22.5 |
| 12 | 9.6 | 1.2 | 90 |
| 24 | 19.2 | 2.4 | 360 |
| 48 | 38.4 | 4.8 | 1440 |
| 100 | 80.0 | 10.0 | 6250 |
| 110 | 88.0 | 11.0 | 7560 |
| AC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 6 | 4.80 | 1.80 | 4.5 |
| 12 | 9.60 | 3.60 | 18 |
| 24 | 19.2 | 7.20 | 72 |
| 48 | 38.4 | 14.4 | 288 |
| 110/120 | 88.0 | 33.0 | 1650 |
| 220/240 | 176.0 | 66.0 | 6800 |
