◆ With LED indicator,
◆ With lockable test button and inspection window
◆ Rated load 1Z 15A; 2Z 10A

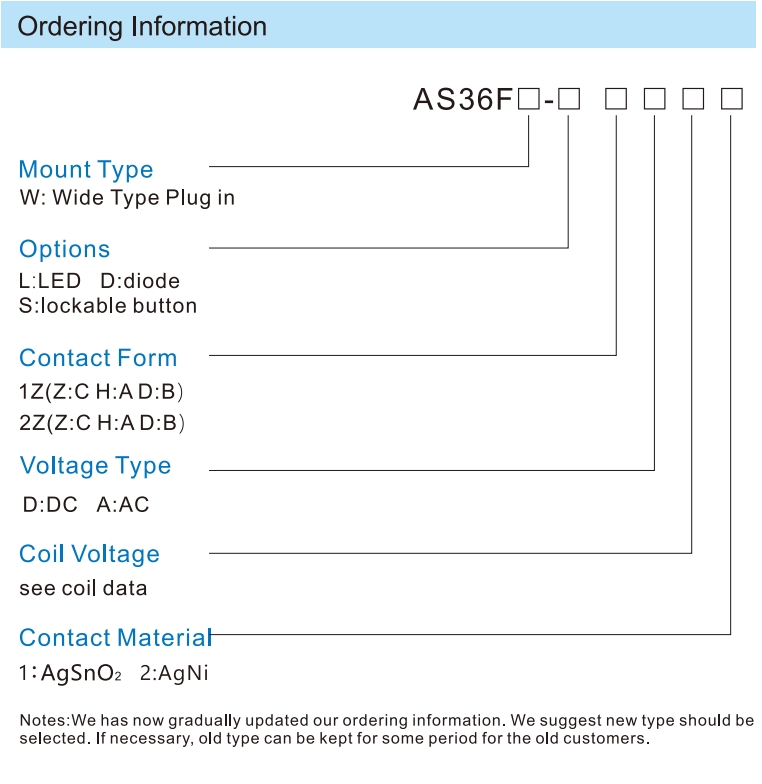

| Specifications | |||
| Contact | Contact Form | 1Z | 2Z |
| Rated Load | 15A 250VAC/30VDC | 10A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ AgNi | ||
| Charact eristics | Insulation Resistance | ≥500MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥1500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||

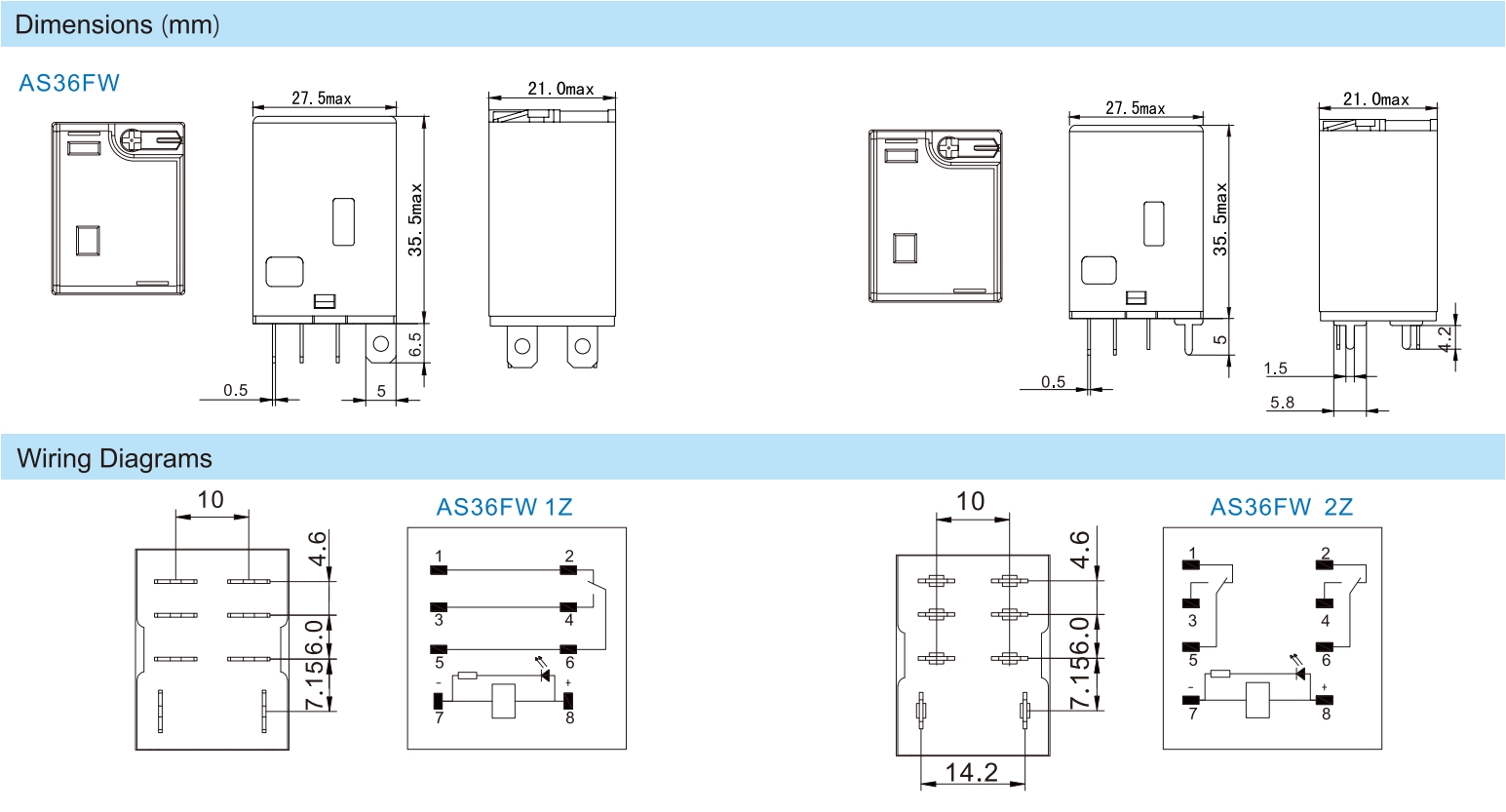

| Terminal Type | Plug in/PCB | ||
| Coil | Operating Power DC/AC | 0.9W/1.2VA | |
| DC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 5 | 4.0 | 0.5 | 28 |
| 6 | 4.8 | 0.6 | 40 |
| 12 | 9.6 | 1.2 | 160 |
| 24 | 19.2 | 2.4 | 650 |
| 48 | 38.4 | 4.8 | 2560 |
| 110 | 88.0 | 11.0 | 11000 |
| AC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 6 | 4.8 | 1.8 | 10.5 |
| 12 | 9.6 | 3.6 | 46.5 |
| 24 | 19.2 | 7.2 | 192 |
| 48 | 38.4 | 14.4 | 783 |
| 110/120 | 88 | 33 | 4000 |
| 220/240 | 176 | 66 | 15000 |
