◆ Small size
◆ Rated load 7A,10A
◆ Insulation level: Class F
| Specifications | ||

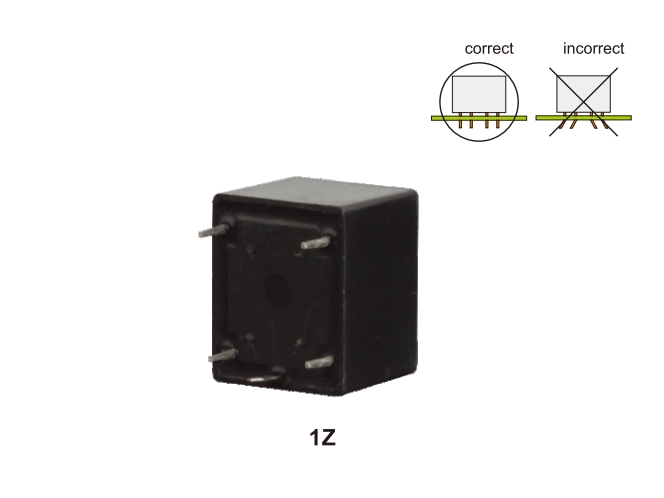

| Contact | Contact Form | 1Z |
| Rated Load (Resistive property) |
7A 250VAC/30VDC 10A 250VAC/30VDC |
|
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | |
| Contact Material | AgSnO₂ AgNi | |
| Charact eristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1000VAC/1min | |
| Between poles≥1500VAC/1min | ||
| Between contact and coil≥2500VAC/1min | ||
| Operate/Release Time | ≤10ms/5ms | |
| Terminal Type | PCB | |
| Coil | Operating Power DC/AC | 0.36W |
| DC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 3 | 2.25 | 0.3 | 25 |
| 5 | 3.75 | 0.5 | 70 |
| 6 | 4.5 | 0.6 | 100 |
| 9 | 6.8 | 0.9 | 225 |
| 12 | 9.0 | 1.2 | 400 |
| 18 | 13.5 | 1.8 | 900 |
| 24 | 19.0 | 2.4 | 1600 |
| 48 | 36.0 | 4.8 | 4500 |
