| PCB Relay: JQC-T78 |
| Coil voltage: 5,6,9,12,18,24,48VDC |
| Contact Specification | ||
| Contact form | 1H 1Z | |
| Contact resistance | ≤100MΩ(1A 6VDC) | |
| Contact material | AgCdO AgSnO2 | |
| Contact capacity | 5A 250VAC/30VDC 10A 125VAC | |
| Technical Specification | |
| Insulation resistance | ≥100MΩ(500VDC) |
| Ambient temperature | -40℃～+70℃（No condensation) |
| Dielectric strength | Between coil and contacts≥1000V 1min |
| Between open contacts≥1000V 1min | |
| Operate / Release time | ≤8ms/5ms |
| Terminal type | PCB mounting |
| Coil Specification | |
| Rated coil power | 0.6W |
| Coil Data | ||||
| Nominal voltage VDC |
Operate voltage VDC |
Release voltage VDC |
Coil resistance Ω±10% |
|
| 6 | 4.50 | 0.6 | 60 | |
| 9 | 6.75 | 0.9 | 135 | |
| 12 | 9.00 | 1.2 | 240 | |
| 18.0 | 2.4 | 960 | ||
Outline dimension, Mounting holes(Bottom view), Wiring diagram(Bottom view)

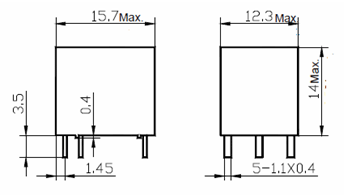

Outline dimension
Mounting holes (Bottom view)
Wiring diagram (Bottom view)
