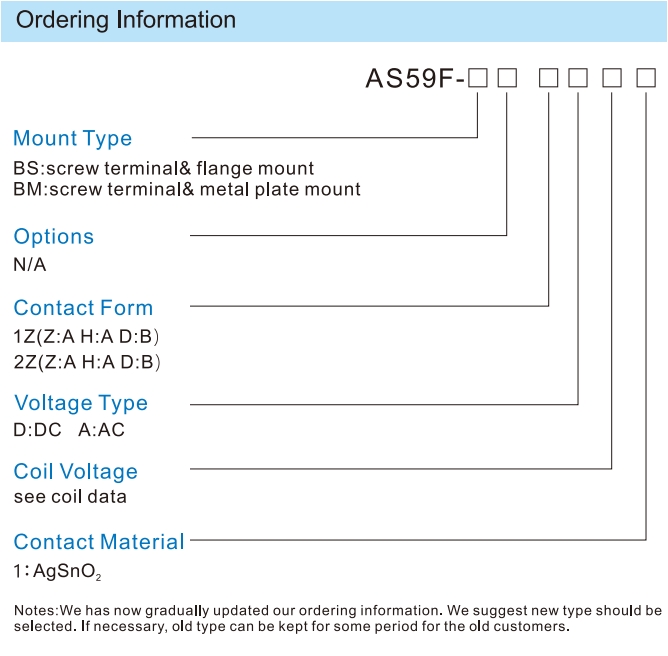

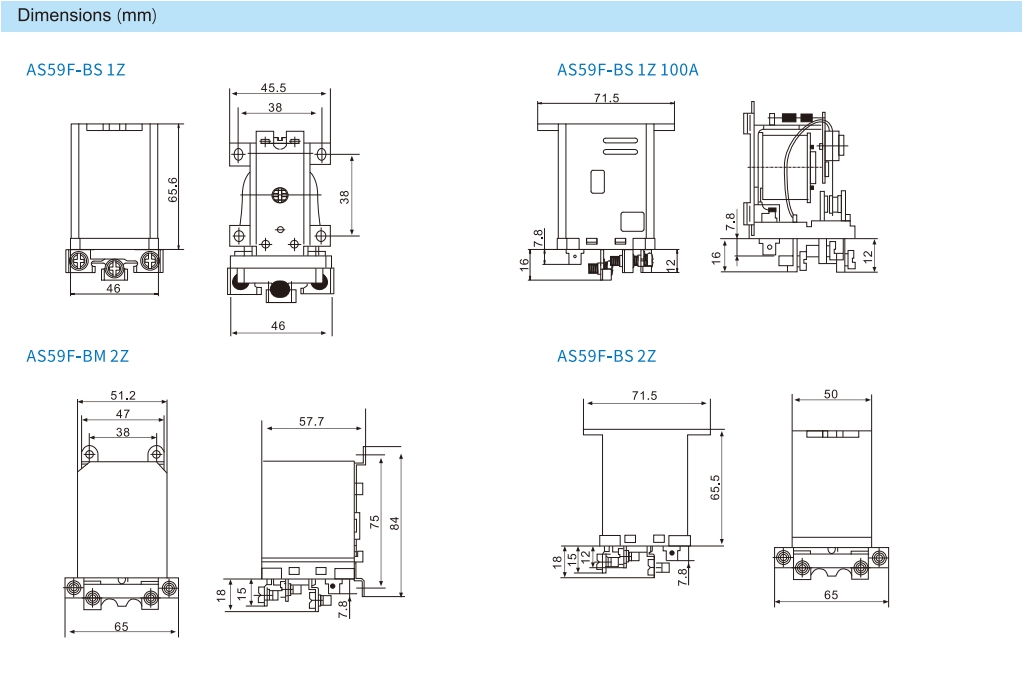

◆ Two kinds of mount options: flange or metal plate

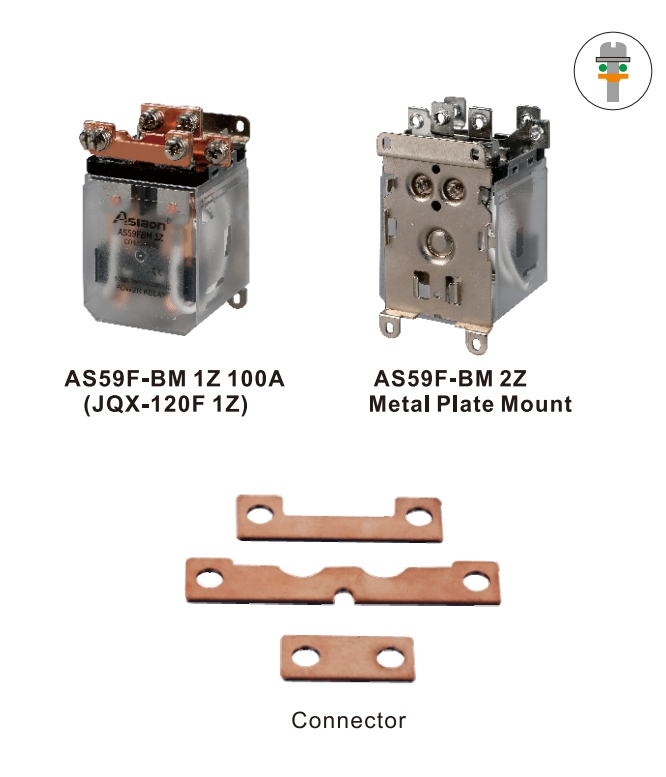

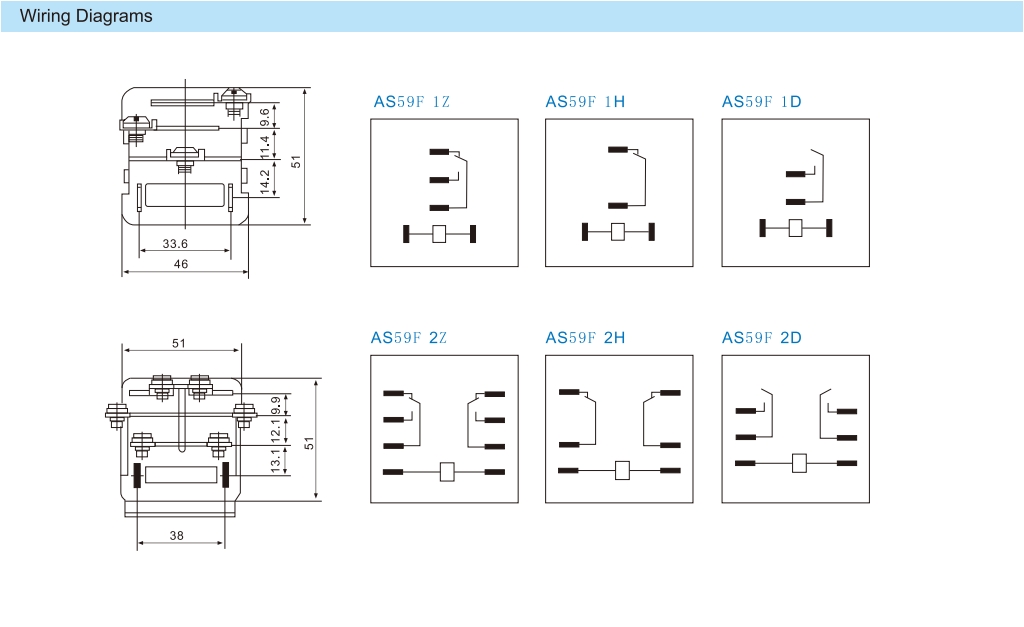

◆ 2Z with connector becomes 1Z, rated load reach 100A max
| Specifications | |||
| Contact | Contact Form | 1Z | 2Z |
| Rated Load (Resistive property) |
80A. 100A 250VAC/30VDC | 80A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Charact eristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥2500VAC/1min | |||
| Operate/Release Time | ≤25ms/25ms | ||
| Terminal Type | Screw | ||
| Coil | Operating Power DC/AC | 3.6W/4.4VA | |
| DC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 6 | 4.8 | 0.6 | 10 |
| 12 | 9.6 | 1.2 | 40 |
| 24 | 19.2 | 2.4 | 160 |
| 48 | 38.4 | 4.8 | 640 |
| 110 | 88.0 | 11.0 | 3360 |
| AC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 6 | 4.8 | 1.8 | 8.2 |
| 12 | 9.6 | 3.6 | 32.7 |
| 24 | 19.2 | 7.2 | 130 |
| 48 | 38.4 | 14.4 | 523.6 |
| 220/240 | 176.0 | 72.0 | 11000/13090 |
