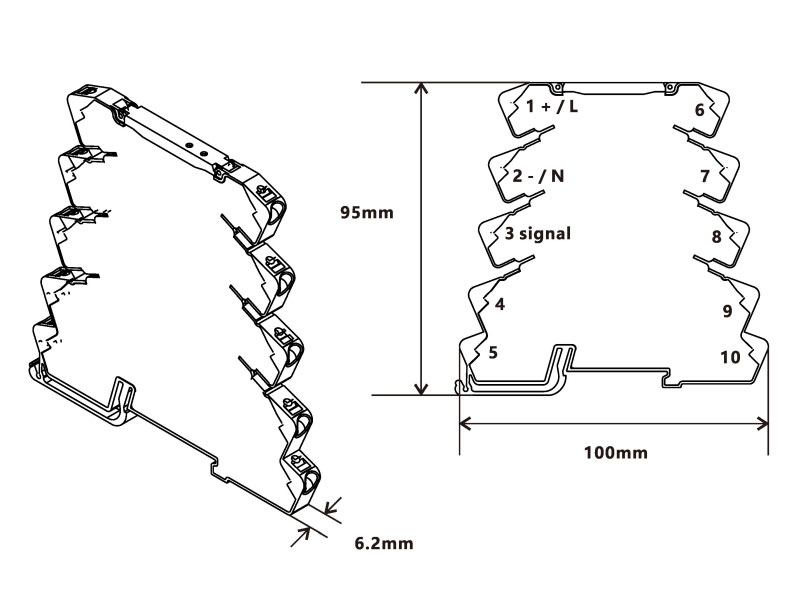

• Thickness is as thin as 6.2mm
• Jumper Bars ensure easy common wiring and crossover wiring to adjacent terminal relays
• Push-in connection design to save time of wiring
• Realized 5A rating (NO or NC type relay) /6A rating (CO type relay) by optimal designs for wide variety of applications
|

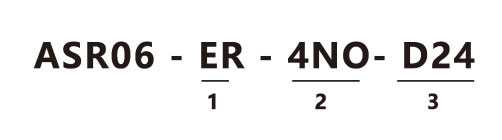

1.Function |
|
|
ER |
Electromechanical Relay |
|

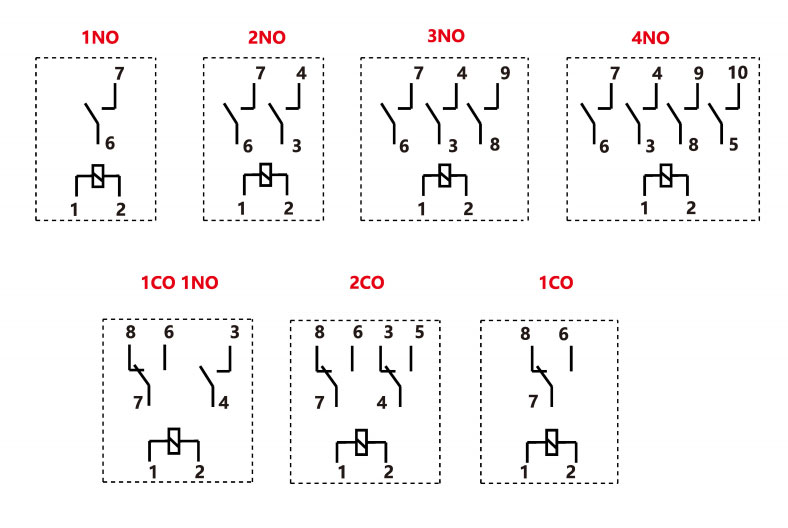

2.Contact form |
|
|
4NO |
1NO*4 |
|
3NO |
1NO*3 |
|
2NO |
1NO*2 |
|
1NO |
1NO*1 |
|
2CO |
1CO*2 |
|
1CO |
1CO*1 |
|
1CO1NO |
1CO*1+1NO*1 |
|
3.Rated voltage |
|
|
D5 |
DC5V |
|
D9 |
DC9V |
|
D12 |
DC12V |
|
D24 |
DC24V |
|
D48 |
DC48V |
|
D60 |
DC60V |
|
A110 |
AC110V |
|
A220 |
AC220V |
| ASR06-ER | |
| Supply voltage | Rated voltage ± 10% |
| Rated current | 6A(CO contact)/5A(NO contact) |
| Max switching capacity | 1500VA |
| Initial contact resistance | ≤100mΩ |
| Mechanical life | ≥220×10⁴ times |
| Operate time | ≤8ms |
| Release time | ≤4ms |
| Impulse withstand voltage | 4000V |
| Protection level | IP20 |
| Storage temperature | -55~+85℃ |
| Working temperature | -20~+85℃ |
| Mounting | DIN rail EN/IEC 60715 |
| Stripping length | 7mm (0.28in) |
| Installed altitude | ≤2200m |
*The above information is subject to change without further notice
