◆ Low coil operating power 0.55W/0.8VA
◆ Creepage distance: 8mm
◆ 4kV dielectric strength (between coil and contacts)
| Specifications | |||

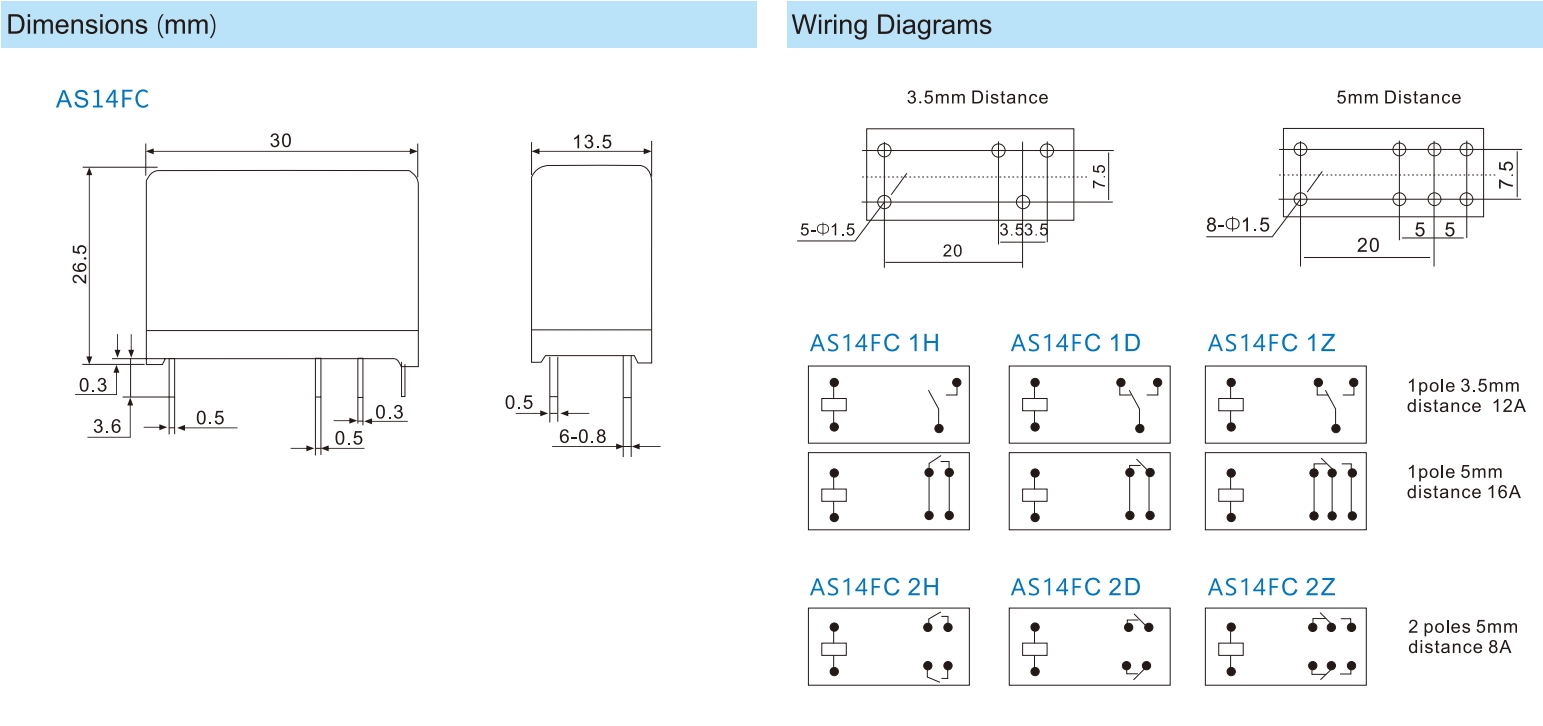

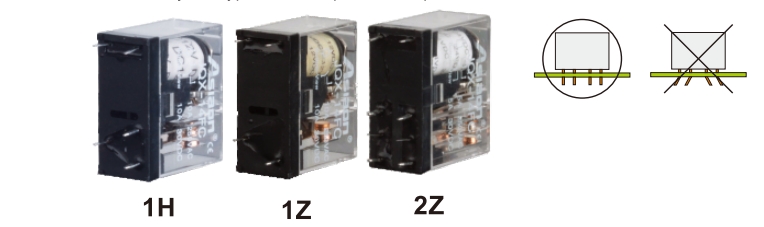

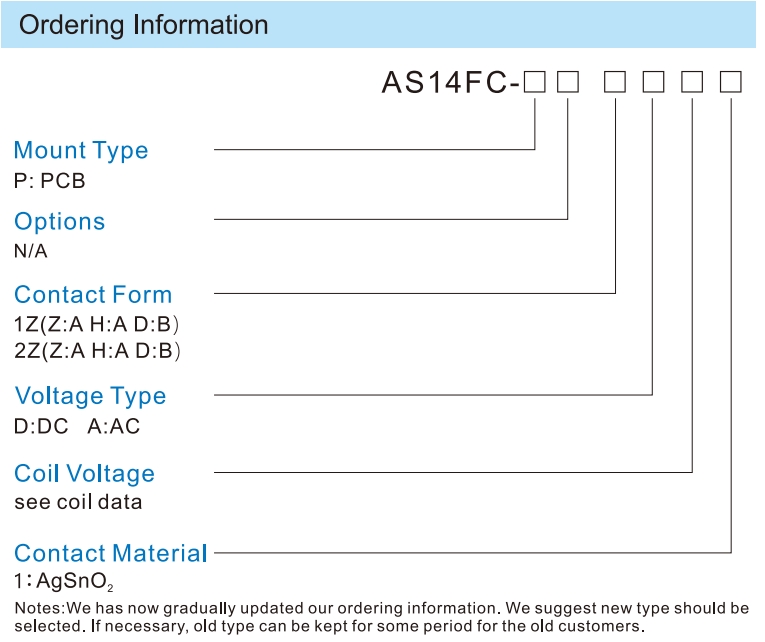

| Contact | Contact Form | 1Z | 2Z |
| Rated Load (Resistive property) |
10A 250VAC/30VDC 16A 250VAC/30VDC |
5A 250VAC/30VDC | |
| Electrical/Mechanical Life | ≥100000times/10000000times | ||
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | ||
| Contact Material | AgSnO₂ | ||
| Charact eristics | Insulation Resistance | ≥1000MΩ (500VDC) | |
| Dielectric Strength | Between open contacts≥1000VAC/1min | ||
| Between poles≥1500VAC/1min | |||
| Between contact and coil≥4000VAC/1min | |||
| Operate/Release Time | ≤15ms/10ms | ||
| Terminal Type | PCB | ||
| Coil | Operating Power DC/AC | 0.55W/0.8VA | |
| AC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 6 | 4.8 | 1.8 | 16 |
| 12 | 9.6 | 3.6 | 63 |
| 24 | 19.2 | 4.2 | 240 |
| 48 | 38.4 | 14.4 | 1085 |
| 110 | 88 | 33 | 5500 |
| 220/240 | 184 | 69 | 24000 |
| DC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 3 | 2.25 | 0.3 | 16 |
| 5 | 3.75 | 0.5 | 45 |
| 6 | 4.50 | 0.6 | 65 |
| 9 | 6.75 | 0.9 | 150 |
| 12 | 9.0 | 1.2 | 260 |
| 18 | 13.5 | 1.8 | 600 |
| 24 | 18.0 | 2.4 | 1080 |
| 48 | 36.0 | 4.8 | 4260 |
| 60 | 45.0 | 7.0 | 6500 |
