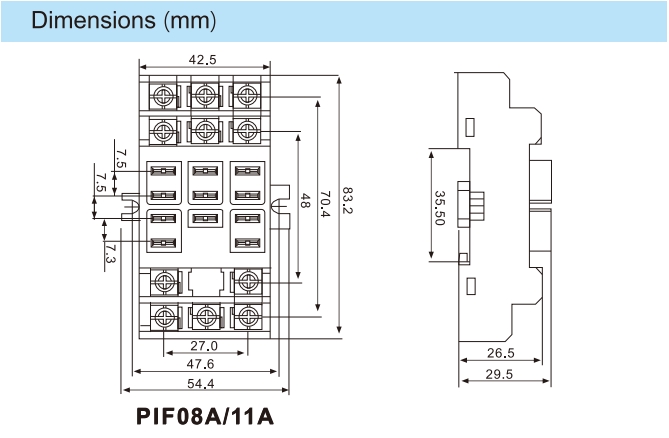

Relay Sockets PIF11A for 30A/40A Power Relay

  • Contact form :
  • Contact resitance :
  • Contact material :
  • Contact capacity :
Contact Now PDF Download

Specification


Specifications
Rated Load Current/Voltage A/VAC 40/300
Dielectric Strength Coil & Contacts V/S 2000
Between contacts V/S 2000
Wire Size AWG/mm2 20-14/0.5-2.5
Tightening Torque Nm 1.0



Matched Accessories
Socket Clip Module DIN Rail
PEF08A / /
PEF11A
