| Specifications | |||
| Rated Load | Current/Voltage | A/VAC | 10/300 |
| Dielectric Strength | Coil & Contacts | V/S | 2000 |
| Between contacts | V/S | 2000 | |
| Wire Size | AWG/mm2 | 20-16/0.5-1.5 | |
| Tightening Torque | Nm | 0.8 | |
| Terminal Ingress Protection | IP20 | ||
| Matched Accessories | |||
| Socket | Clip | Module | DIN Rail |

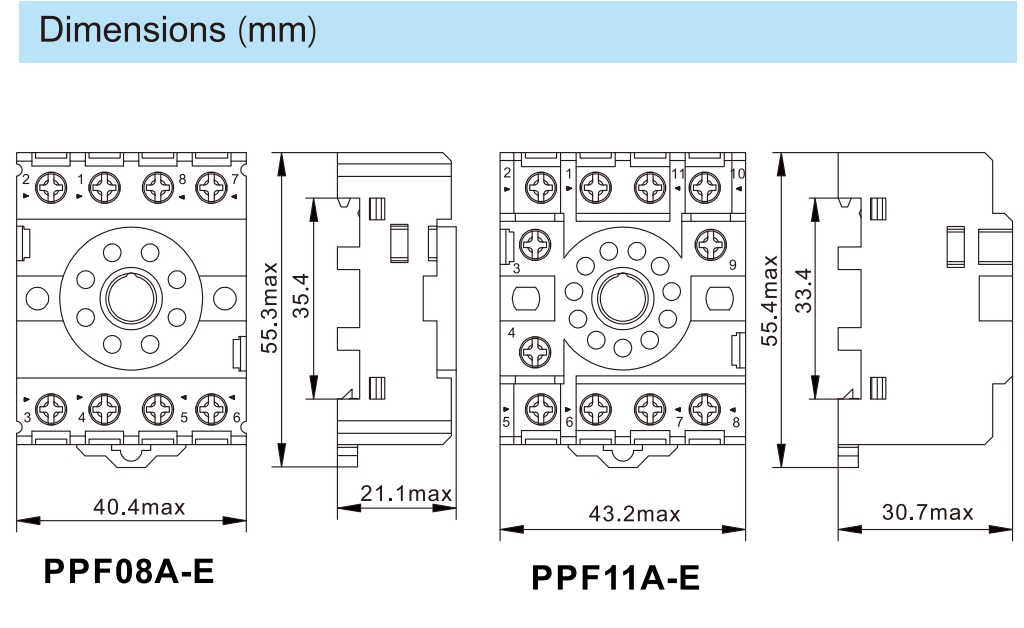

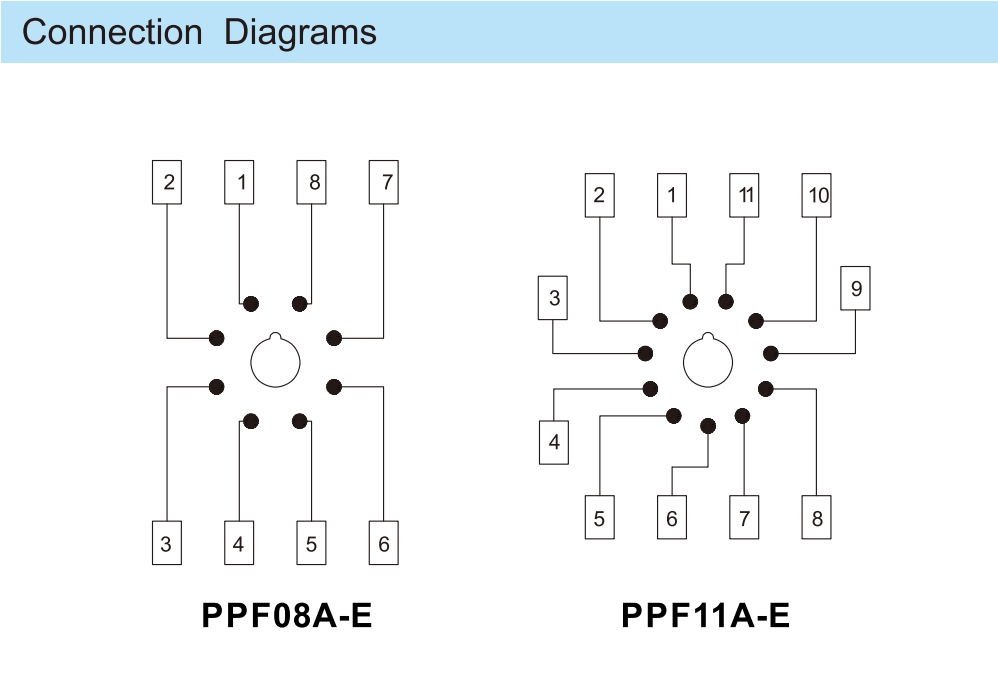

| PPF08A-E | K-53 | / |  |
| PPF11A-E | |||
