• Worldwide power specifications supported
• Relay warning status can easily be monitored by LED

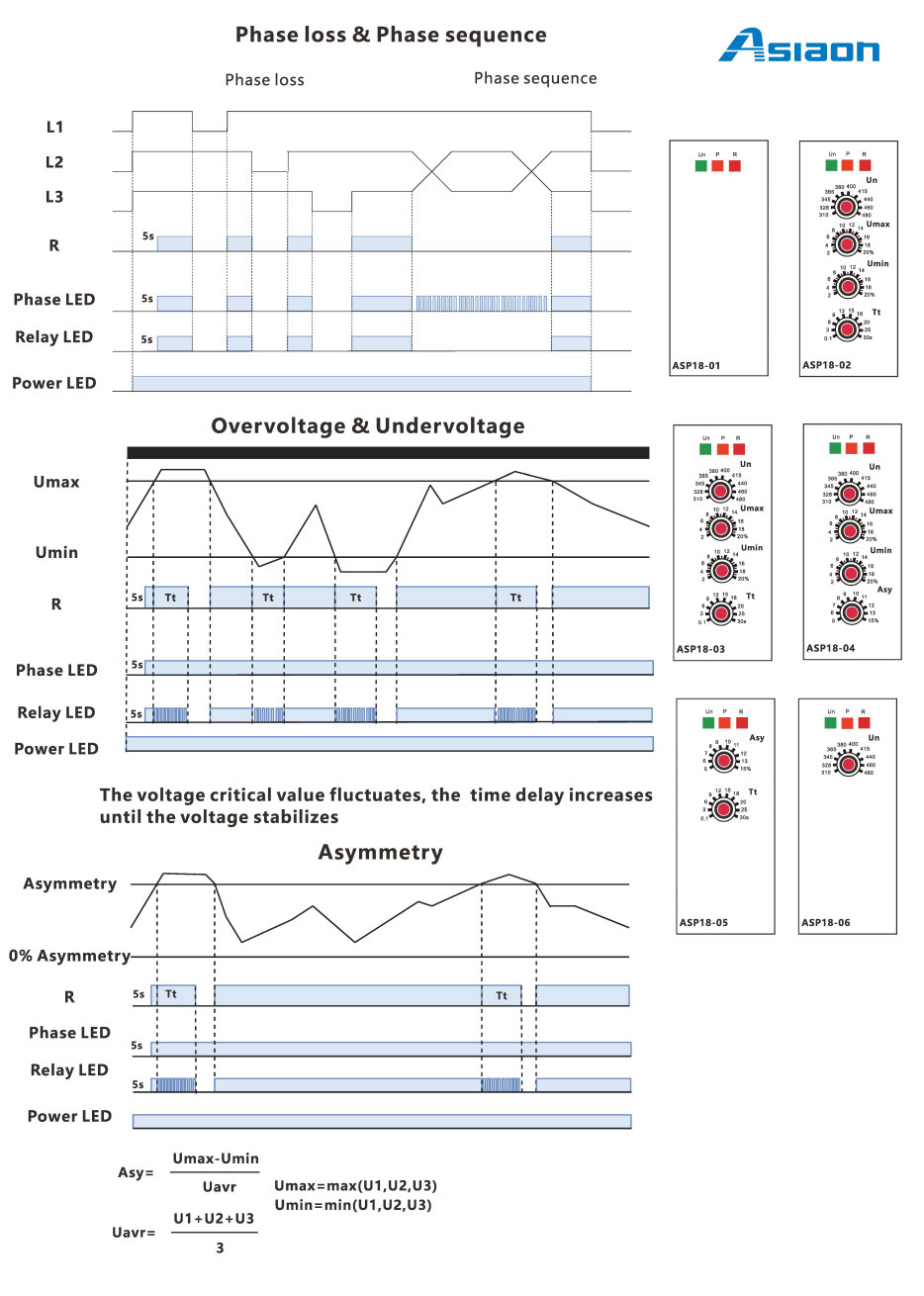

• Monitor for phase sequence, phase loss, overvoltages and undervoltages
|
1.Function |
||||||
|
|
Over oiaoe |
Under-voltage |
Asymmetry |
Time delay |
Phase sequence |
Phase loss |
|
01 |
- |
- |
- |
5s |
• |
• |
|
02 |
2%~20% |
-20%~-2% |
non |
0.1~30s |
• |
• |
|
03 |
2%~20% |
-20%~-2% |
8% |
0.1~30s |
• |
• |
|
04 |
2%~20% |
-20%~-2% |
5%~15% |
5s |
• |
• |
|
05 |
- |
- |
5%~15% |
0.1~305 |
• |
• |
|
06 |
15% |
-15% |
8% |
5s |
• |
• |
|
2.Supply voltage |
||
|
A |
3phase 3wire |
173,190,198,208,220,230,240,250,260,275L-L |
|
B |
3phase 4wire |
100,110,115,120,127,133,139,145,151,160L-N |
|
C |
3phase 3wire |
310,328,345,365,380,400,415,440,460,480L-L |
|
D |
3phase 4wire |
180,190,200,210,220,232,240,255,266,278L-N |

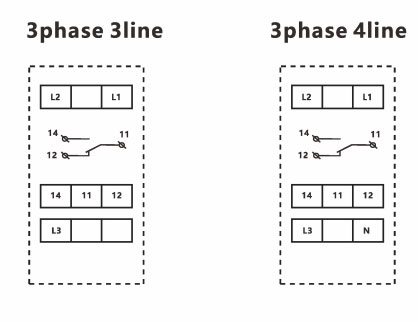

| ASP18 (3phase 3wire) | ASP18 (3phase 4wire) | |
| Monitoring terminal | L1-L2-L3 | L1-L2-L3-N |
| Supply terminal | L1-L2 | L1-N |
| Rated supply frequency | 45HZ-60HZ | |
| Voltage tolerance | -15%~+10% | |
| Supply indication | Green LED | |
| Relay indication | Red LED | |
| Time ranges | 0.1s-10s | |
| Setting | Button | |
| Setting deviation | 0.1% | |
| Measurement accuracy | ≤1% | |
| Temperature coefficient | 0.05%/℃, at=20℃ (0.05%/℉, =68℉) | |
| Output conctact | 1*SPDT | |
| Rated current | 1*16A | |
| Mechanical life | 1*10⁷ | |
| Electrical life | 1*10⁵ | |
| Ambient Temperature | -20...+60℃ /-40...+85℃ | |
| Mounting | DIN rail EN/IEC 60715 | |
| IP Rating | IP20 | |
| Stripping length | 7mm (0.28in) | |
| Installed altitude | ≤2200m | |
| Pollution level | 2 | |
| Max cable size | AWG13-20 0.4N·m | |
| Dimension | 90mm*18mm*64mm | |
| Weight | about 90g | |
| Standards | GB/T 14048.5,IEC60947-5-1,EN6812-1 | |
*The above information is subject to change without further notice
